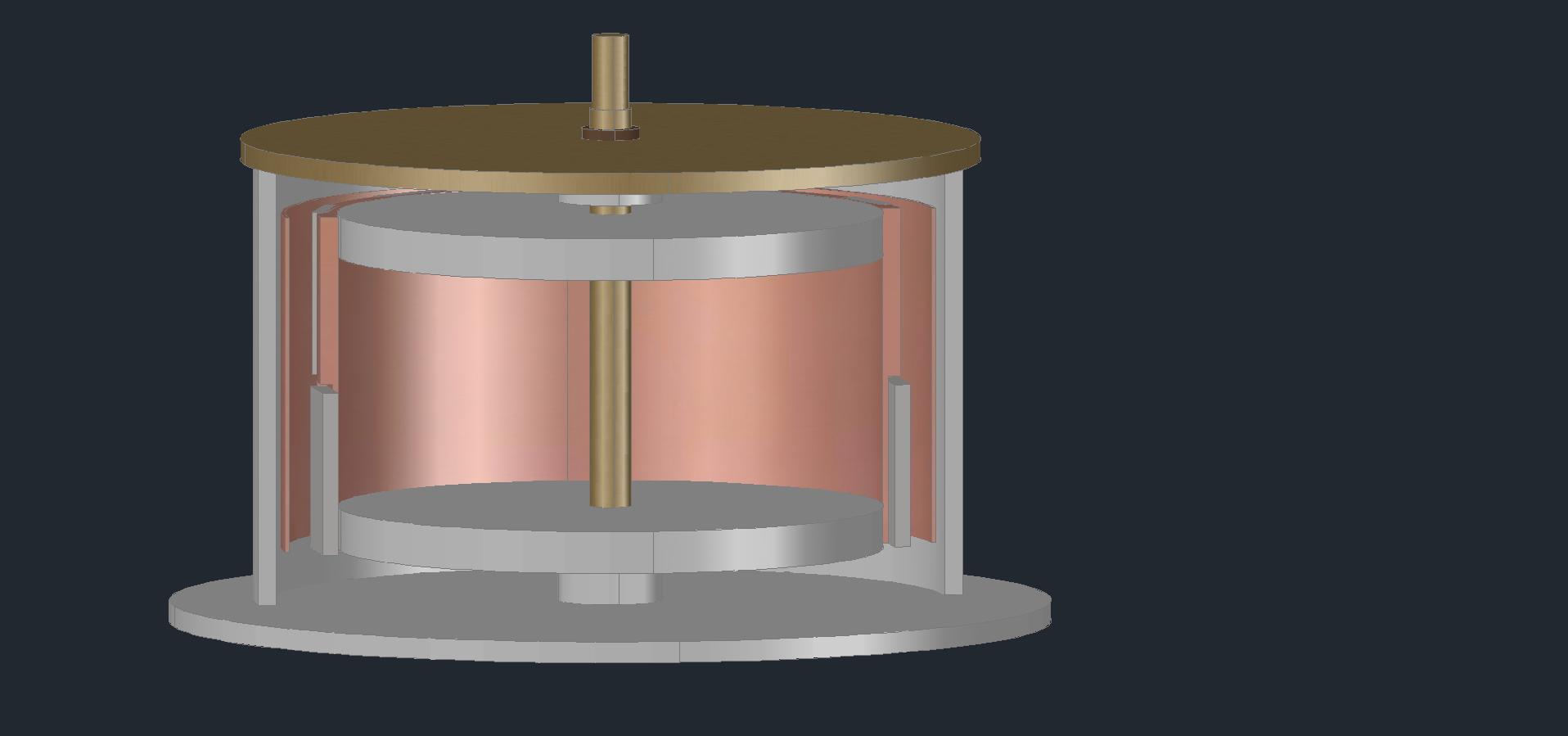

These are very basic CAD drawings to get you started.
- This Romag Generator runs on renewable energy or free energy that is derived through magnets and the magnetic field of the Earth
- Generator produces magnetic current equivalent of 50 H.P. output
- Suggested use for generator is running free energy magnetic devices including the Magnetic Water Pump and the Pyramid Molecular Vibratory Exchanger Unit
- Generator does not produce pollution, so it is beneficial to the environment
- Generator is designed to recycle magnetic energy back into the Earth’s energy system
- Requires startup spinning to achieve 1850 RPM
- Requires special sintered magnets
We are providing this free information out of love to help heal our planet. Please help us in educating people about magnetic energy.
The Romag Generator helps create balance in nature simply by running. When the Romag connects to the ionosphere, counter-rotating neutral energy vortices form which send energy back and forth from the unit to the ionosphere. These vortices result in large toroidal fields that form in the atmosphere. These toroidal fields are also counter-rotating and flowing with energy in opposite directions. The result of these energy fields is a natural balancing in the atmosphere, both chemically and energetically. At any given moment in any given location, the ideal chemical balance in the atmosphere changes. The Earth’s energetic balancing system functions perfectly unless harmful technology interferes with the process. Right now the atmosphere around the planet is out of balance with chemical/molecular ratios that are far from ideal. Neutral magnetic energy can help the planet re-balance the atmosphere by re-configuring harmful molecules into a neutral form of energy. The Romag, for example, will balance the atmosphere, clean the air, correct the polarities, etc. in an area about ten miles in diameter, depending on the atmospheric conditions. This unit and others like it will perform hundreds of different functions and help restore the planet to a non-polluted, harmonic equilibrium.
A note on terminology: Magnetic energy is also called life force energy (an energy occurring in all life and all things), zero-point energy (an energy that occurs even in the absolute zero temperature of space), ether (an energy that interacts with gravity and exists on a cosmic scale to guide celestial bodies and life) as well as other terms. The definitions of these different terms may be similar, but we are choosing to use magnetic energy to attempt to integrate the practical applications of this energy with the esoteric concepts behind this energy. Like wise, the Romag Generator may be called a free energy device, an over unity device, green technology, a perpetual motion machine (this is inaccurate as we will explain), a Tesla motor, and other names which may or may not be accurate depending on how individuals are defining these terms. We will try to define the terms we use to help prevent too much confusion.
The Earth is surrounded with a sea of energy that is pulsing and is constantly being supplied by a Universal energy system. This energy field that we call the Ionosphere supplies all of the energy needs on our planet. Like the other units we have presented, this Romag-Generator taps into this energy field, converts the energy into something that we can use, and then releases the energy back into the system. This unit, like the others, recycles the Earth’s magnetic energy, in fact, all these units cannot function if the energy is not getting recycled because the buildup of energy causes them to stop working. UNLIKE ELECTRICAL DEVICES, MAGNETIC ENERGY DEVICES KEEP IONOSPHERE ENERGY IN ITS NATURAL CONFIGURATION ALLOWING IT TO RECYCLE BACK INTO THE EARTH’S ENERGY FIELD, THEREBY SUSTAINING THE IONOSPHERE AND OZONE LAYER. THESE DEVICES CAN ALSO ASSIST IN RE-BUILDING THE OZONE LAYER.
When we present machinery that connects to the Universal energy mechanism, we are opening a whole new world. These concepts are nothing new, but we have yet to see them implemented in our societies. This technology is so far beyond electricity in its versatility and applications, there is absolutely no comparison. Magnetic energy can manifest as force fields, as fields with various characteristics like weightlessness; it can be transmitted through air and space, it can replicate other energy or matter, it can change the characteristics of energy and matter, it can be blended with various elements to produce various results like heat and cold, it can convert matter like garbage into a more pure energy, and the list goes on and on.
Magnetic energy is not confined to the simple force people observe between two magnets. Magnetic energy is more accurately described as an infinite variety of energy manifestations that are multidimensional in nature. This unit would have absolutely no connection to the Ionosphere if magnets were as simple as most people think. When magnets are spun at the proper speed and their fields are harnessed with the proper elements, they produce a frequency very similar to the ionosphere, and something magical happens. Because of the universal phenomenon of attract-attract (where similar energies are attracted to each other), energy structures in the ionosphere begin to gather and swirl into a vortex as the unit attracts them. The small signal generated by the unit travels at a speed beyond space and time, and energy structures similar to it are attracted to it at the same velocity. This attract-attract phenomenon allows magnets to assist in a tremendous amount of energy generation. This motor is a magnetic device incorporating the use of permanent magnets turning in a rotor to generate a magnetic energy which is then circuited to other mechanisms to do useful work.
When electricity was first discovered, people wondered what it could be used for. At the time it seemed to have very few applications, but as people began to tap their creative potential, numerous uses emerged and continue to emerge today. The problem is electricity is slowing killing us and the environment. The pollution generated by electricity production is damaging the environment and it is only getting worse because electricity is becoming more widespread. Even more importantly, however, is the negative effect electricity has on the Earth’s energy field. Electricity generation produces harmful fields that interact with the Earth’s energy field in a unnatural manner. There is a very important natural phenomenon that occurs when electricity is generated. When electricity is generated there is an energy interaction with our ionosphere. The more powerful the electrical field, the greater the interaction with the ionosphere. The government clearly understands this concept because they invested billions of dollars on the interaction between electricity and the ionosphere. The problem is that energy is stripped from the ionosphere when electricity is generated, and this energy removal without recycling is causing a state a magnetic imbalance in the earth’s energy system. The ionosphere will respond to this energy imbalance by creating energy vortexes that draw energy back into the ionosphere. These energy vortexes can create tremendous storms that often involve tornadoes and hurricanes. The generation of electricity must stop to preserve the ionosphere and ozone layer.
Magnetic energy is better for the planet because it generates energy in a manner consistent with the natural principles that govern the Earth, and it recycles energy after it uses it. More over, magnetic energy does not create pollution, and through the proper technology, magnetic energy can help repair the damage we have done to the environment.
PRINCIPLE BEHIND THIS ENERGY SOURCE
This motor attracts neutral magnetic energy into the unit, sets up a response between various components which then complete a circuit that becomes the driving force to turn the structure.
SUMMARY OF THE DEVICE
An important objective of the present generator is to provide a revolutionary new concept concerning the utilization of power by directly capitalizing on the natural resource phenomenon of magnetism. Electrical power is the result of expending energy to drive a copper wire through a magnetic field. But magnetic energy is a natural resource needing a specific mechanism to draw on. There is no incorporation of a secondary energy source, except at start-up, to cause this magnetic unit to continuously function.
HOW THE UNIT FUNCTIONS
The Romag magnet motor/generator must be charged up by driving the main shaft at 1350 R.P.M. for 67 seconds. This charging process manifests as magnetic energy within the 10 coils of copper wire, the copper tube supporting these coils and the copper coated steel wires wrapped around the magnets. This charging is accomplished while the ten coil connection wires are making contact and setting up their alternating magnetic poles.
After the 67 second charging time one of these coil connection wires must be opened and this circuit again completed through an energy draw process. As current is drawn from the ten coils this ‘draw’ sets up magnetic poles which are a response between the rotor magnets and the coils. This response then causes the main shaft to be rotated by the permanent magnets as they attract and build a release field. Then the driver unit is disconnected allowing the unit to rotate with the load being the activating driving force.
Do not use ‘electrical teaching’ to presuppose how much of an energy flow is allowed to leave the coils by focusing on the wire size of these 10 coils. The magnetic current flow being circuited out through the copper wire has no dependency on this wire’s inner structure, in that the wire is only a point of transference where an exchange takes place, while producing ‘no heating’ of the wires/coils.
The fields of the magnets must be maintained during their spin movement. These magnetic fields which are encapsulated are achieved by the wiring system. The attract/release of the magnets is a function caused by several factors. First, the magnets attract field between north and south is completed by taking a crossing path of attract (top of one row to bottom of next, etc.). This action has the effect of fields blending into fields, and a hold-back attract does not happen. Each time a magnet set passes a coil an interchange of like energy between the coils around the magnets and the generating coils sets-up neutral polarities which are ‘release fields’ and prevents a hold-back attract.
One important magnetic assembly is the circuitry that allows this interchange of energy. This is a recycling of a stabilized magnetic energy not electro/magnetic because the field of force is not a case of electrical input, an input that created the magnetic, but rather a build-up of magnetic energy which caused an energy thrust.
In further defining the workings of this unit it is important to understand that although electrical and magnetic (energy) work with similar attitudes, the manner in which they work sets-up a differing energy effect. One of these effects is that magnetic structures want to share their flow, compatible to the Universal Force, while electrical flow argues, (short circuits, sparks, etc.). Because of this fact the working responses (within the unit) take place, ‘how they are needed’, and ‘when they are needed’ which results in a functioning unit. There is a continuous transmutation process taking place whereby magnetic energy continually generates an energy that manifests a measurable current. This ‘removed current’ is best described as low voltage at very high amperage and if this energy is used to its maximum potential then it will outproduce the power produced by a standard 50 H.P. electrical generator.
With a constructed unit that functions continuously, there comes an awesome awareness that by allowing the now set laws of physics to be changed error is corrected. We can then discover that magnetism has a true value and is not an obscure by-product. From this mental freedom will come discoveries heretofore unknown concerning magnetic fields.
The following are claims to summarize important points about the unit:
1) A magnetic powered device that utilizes a natural, neutral and universal magnetic energy and makes the energy available for use to a different device that is designed to attract the energy from this unit. For example, this Romag-Generator can power the Magnetic Water Pump or the Pyramid Molecular Vibratory Exchanger Unit.
a) A device whereby a rotating portion is supported in an appropriate housing
b) Rotating portion being a rotor which has secured to it an array of magnets uniformly spaced and that when properly charged cause motor rotation
c) Said rotor having secured to it coils of wire, properly arranged to encapsulate the fields of the rotating magnets, which then produce an ongoing magnetic energy
d) Said rotor and parts being constructed from known metals that are necessary for the conductive activity used in a magnetic circuit
e) Rotor in said unit having a particular spacing of magnets that produces the necessary requirements to achieve the end result which when in action has a stop gauge effect on the productive magnetic system
f) Part in said device being a stationary metal tube that creates a stabilizing boundary for the magnetic field of the unit
g) Unit has a magnetically pressurized tube that serves as a magnetic reservoir whereby magnetic energy is circuited, as needed, to coils for energy removal, i.e., power lighting fixtures, pumps, etc.
h) Copper coils wrapped around said metal tube in such a manner as to respond to rotating magnets causing continuous rotation. The device utilizes an attracting system that freely converts magnetism, (from permanent magnets) into magnetic energy, utilizes and returns it to its original state.
i) The device has attracting system comprising a wiring arrangement whereby the attracting force is caused to release at the needed release moment to allow continuous rotation.
j) The device uses a rotational movement that includes a control means for accurately maintaining the number of revolutions per minute.
k) The device has a means for activating the unit into motion.
l) Further identified as a device wherewith the magnetic structures of the Earth, which are universal in effect, are utilized to bring about the evolution necessary for the discovery of the outer limits so that people and space can come together.
In the past, inventors have sent devices and drawings to Patent Offices claiming they had invented perpetual motion. We state that this motor, which is driven totally by permanent magnet power, in no way can be compared with perpetual motion in that the principle is not the same. When perpetual motion is discussed, it is mentioned in terms of unknown factors which produce an unknown force.
Here, in this Ro-Mag Generator, the force of attract-attract to attract-release within the magnetic structure can be observed, thereby producing the generating force to turn the rotor which in turn produces the outflow of power. This power source is not predicated on a continuous flow of energy but predicated on the consistency of the transmutation process of the magnetic molecular structures within the Earth’s pressure flow.
Parts list for Romag-Generator
1) ALUMINUM BASE PLATE, 21″ DIA., 1/2″ THICK WITH 1-3/8″ BORE. THE PURPOSE FOR THIS EXTENDED BASE DESIGN IS TO BALANCE OUT THE STRUCTURE WHICH THEN EQUALIZES THE MAGNETIC FLOW.
2) ALUMINUM TUBE SECURED TO PART #1 MEASURING 21/2″ O.D.,1 3/8″ I.D. BY 1″ THICK
3) BOTTOM BRONZE BUSHING, 1-3/4″ LONG, 1-3/8″ O.D. BY 1″ I.D.
4) A TEFLON THRUST WASHER, 1″ I.D., 21/2″ O.D. BY 1/4″ THICK
5) A 1-3/4″ LONG BY 7/8″ I.D., BY 1″ O.D. TEFLON SLEAVE BEARING, GLASS FILLED (BOSTON GEAR) PRESSED ONTO CENTER SHAFT. This must be an extremely durable part. Ideally, it should be non-metal.
6) CENTER BRASS SHAFT, 14″ LONG, 1″ DIA., MACHINED AT ENDS TO 7/8″ DIA.
7) TOP COVER PLATE, 17-5/8″ O.D., 1/2″ THICK WITH A CENTER BORE OF 1-3/8″ MADE OF CAST SEMI- RED BRASS. DESCRIPTION:
Al 0.005 max Cu 75.0-77.0 Fe 0.40 max Ni 1.0 P 0.02 max Pb 5.5-7.0 S 0.08 max Sb 0.25 max Si 0.005 max Sn 2.0-3.0 Zn 13.0-17.0 Other Cu may include Ni; for continuous castings, P 1.5 max.
THE COVER BECOMES A CONDUCTOR OF THE PARTICLE ACTIVITY THAT IS GENERATED ON THE ROTARY MAGNETS AND SERVES AS AN INCOMING AND OUTGOING POINT OF MAGNETIC TRANSFERENCE.
8) ALUMINUM TUBE SECURED TO BOTTOM SURFACE OF PART #7, MEASURING 21/2″ O.D., 1-3/8″ I.D. by 1″ THICK
9) TOP BRONZE BUSHING, 1-3/4″ LONG, 1-3/8″ O.D. BY 1″ I.D.
10) A 1-3/4″ LONG BY 7/8″ I.D. BY 1″ O.D. TEFLON SLEAVE BEARING, GLASS FILLED, PRESSED ONTO TOP OF CENTER SHAFT. If you substitute this part, make sure you use material that non-magnetic and EXTREMELY durable.
11) ONE TOP 1/4″ KEY SLOT AND KEY TO SECURE ALUMINUM ROTOR PLATE TO SHAFT #6.
12) TOP ALUMINUM ROTOR PLATE, 13″ DIA. WITH 1″ BORE, 1″ THICK
13) ONE BOTTOM 1/4″ KEY SLOT AND KEY TO SECURE ALUMINUM ROTOR PLATE TO SHAFT #6
14) BOTTOM ALUMINUM ROTOR PLATE, 13″ DIA. WITH 1″ BORE, 1″ THICK.
15) TUBE HELD TO CENTER SHAFT BY PARTS #12 AND #14 MADE OF 83% COPPER, 3% ZINC, 7% TIN, AND 7% LEAD. TUBE MEASURES 8″ HIGH, 14-5/8″ O.D., 7/8″ WALL THICKNESS
16) THIN PLASTIC TAPE PLACED BETWEEN PARTS #12 AND #14 AS THEY ARE PRESSED INTO TUBE #15
17) ARE TEN TOP GROOVES CUT INTO TUBE #15 EQUALLY SPACED, MEASURING 4″ HIGH, 2-1/32″ WIDE BY .300″ DEEP.
18) ARE TEN BOTTOM GROOVES CUT INTO TUBE #15 EQUALLY SPACED AND ADVANCED FROM TOP GROOVES BY HALF OF GROOVE SIZE, ALSO MEASURING 4″ HIGH, 2-1/32″ WIDE BY .300 DEEP.
19) A .300″ WIDE SLOT CUT IN CENTER OF PART #15 FOR 360 DEGREES, TO A DEPTH OF 5/16″
20) TWO LAYERS OF MASKING TAPE PLACED INTO GROOVES #17 AND #18.
21) ARE 20 SETS OF 78 BENT COPPER WIRES PER SET, WIRES ARE COTTON COATED #19 WIRE (.036″ THICK – COPPER, NO VARNISH). THESE WIRES ARE HELD IN PLACE BY PART #20 WITH THE COTTON INSULATION NOT REMOVED.
22) ARE 20 MAGNETS MADE OF ALNICO 5 SINTERED MATERIAL, (COOLED IN A MAGNETIC FIELD) M-1076; 8 AL, 14 Ni, 24 Co, 3 Cu, bal Fe. PEAK ENERGY PRODUCT OF 3.5. EACH MEASURING 3-7/8″ HIGH, 1-7/8″ WIDE BY 3/8″ THICK, SECURED INTO GROOVES #17 AND #18 WITH BACK FACE OF MAGNETS DIRECTLY AGAINST COTTON COATING OF BENT WIRES #21
23) ARE 20 SETS OF ‘WIRE WRAPS’ PLACED AROUND THE 3/8″ WIDE PERIMETER OF ALL 20 MAGNETS; THERE ARE 9 TURNS PER WRAP OF .032″ THICK CLEAN COPPER COATED STEEL WIRE, MAKING FIRM CONTACT DIRECTLY TO MAGNETS
24) THE OUTSIDE SURFACES OF PARTS #23 MAKE FIRM CONTACT TO PARTS #21, THUS COTTON INSULATION IS REMOVED FROM BENT WIRES ONLY AT THIS POINT OF CONTACT.
25) THE TEN TOP SET OF WIRES #23 ARE CONNECTED WITH EXTENDED WIRES THAT GO FROM THE NORTH HALF OF THE 3/8″ WIDE SURFACE TO THE SOUTH HALF OF THE WIRE SET WHICH IS NEXT TO IT, THUS FORMING A CLOSED LOOP CONNECTION TO THESE TEN SETS OF WIRES.
26) THE TEN BOTTOM SET OF WIRES #23 ARE ALSO CONNECTED WITH EXTENDED WIRES THAT GO FROM THE NORTH HALF OF THE 3/8″ WIDE SURFACE TO THE SOUTH HALF OF THE WIRE SET WHICH IS NEXT TO IT THUS FORMING A CLOSED LOOP CONNECTION (NO CONTACT FROM TOP TO BOTTOM).
27) ARE 20 COPPER CONNECTING SLEAVES MEASURING 1/8″ O.D. BY .032″ I.D. BY 3/8″ LONG TO JOIN WIRES #25 AND #26 BY ALLOWING THE STEEL CORE TO CONTACT STEEL TO STEEL AND THE COPPER EXTERIOR COATING TO BE CONNECTED COPPER TO COPPER,THUS MAINTAINING TWO INDEPENDENT FLOW CIRCUITS.
28) ARE TEN PIECES OF MYLAR INSULATION MEASURING 2-1/32″ BY 5/16″ BY .010″ THICK, PLACED BETWEEN THE WRAPPED WIRES FROM THE UPPER MAGNETS TO THE LOWER MAGNETS, THUS THESE MAGNETS ARE LOCATED TO PRESS AGAINST THIS INSULATION WHICH IS LOCATED AT THE CENTER OF PART #19.
29) COPPER TUBE TO HOLD 10 COILS, TUBE MEASURES 151/2″ I.D., MADE OF THREE PIECES OF 1/16″ THICK COPPER RINGS, 8″ HIGH.
30) TWO PIECES OF .002″ THICK PAPER STRIPS, 8-1/8″ WIDE, PLACED BETWEEN PARTS #29.
31) ONE PIECE OF .100″ THICK MICA, 1/8″ WIDE BY 8″ LONG, PLACED AT THE SEAM OF COPPER TUBE TO MAINTAIN A SPLIT COPPER RING SPACING OF 100″. THE NEEDED MAGNETIC ACTION IN THESE COPPER RINGS INTERACTS IN DIFFERENT DIRECTIONS IN A SIMULTANEOUS MANNER AS A RESULT OF THE FACT THAT A MAGNETIC FLOW (AS OPPOSED TO ELECTRICAL) IS DOUBLED IN SPEED CAUSED BY THE MICA SEPARATION OF THESE COPPER RINGS.
32) TEN ‘LOCATOR GROOVES’ CUT INTO THE TOP AND BOTTOM OF TUBE #29, EQUALLY SPACED FOR 360 DEGREES. EACH GROOVE COVERS A DISTANCE OF 3-1/8″FOR COIL PLACEMENT.
33) ARE 10 BOTTOM COILS OF NUMBER 16 COTTON COATED COPPER WIRE, (NO VARNISH) PLACED AROUND GROOVES #32 WITH 45 TURNS, SPACED CLOSELY – WIRE TO WIRE.
34) ARE 10 TOP COILS OF NUMBER 16 COTTON COATED COPPER WIRE (NO VARNISH) PLACED CENTERED ABOVE THE 45 TURNS AND NESTED INTO THE GROOVES OF THE BOTTOM COIL WITH 23 TURNS WHICH SPAN 11/2″. AS THE BOTTOM COIL IS HAND WOUND, THE TOP COIL THEN GETS WOUND IN A ‘REVERSE DIRECTION’ THUS CAUSING A U SHAPED CONNECTION (NOT BROKEN) BETWEEN THE BOTTOM LAYER AND TOP LAYER FOR A TOTAL OF 95 FEET OF WIRE PER COIL.
35) CONNECTION PATTERN FOR THE TEN COILS IS A 1 TO 3 JUMPER CONNECTION PLACED FOR ALTERNATING COIL POLARITIES. (SEE SKETCH.)
36) ONE OF THE CONNECTIONS PART #35 IS OPENED AFTER A CHARGING SEQUENCE OF 67 SECONDS AT 1850 R.P.M. AND THEN GENERATED ENERGY IS CONTINUOUSLY EXTRACTED WITH THE LOAD BECOMING THE ACTIVATING DRIVING FORCE THUS SERVING AS A REPLACEMENT FOR THE JUMPER CONNECTION.
37) VERTICAL ALUMINUM ‘TUBE MEASURING 16-1/8″ I.D., 7/8″ THICK WALL AND 101/2″ HIGH. COILS #34 ARE UP AGAINST THIS TUBE’S INNER SURFACE WITH ONLY MASKING TAPE BETWEEN, THUS THE COILS ARE THE ONLY SUPPORT FOR PART #29. THIS ALUMINUM TUBE SERVES TO COMPLETE THE NECESSARY MAGNETIC CIRCUIT BY ITS THICKNESS WHICH SERVES TO SUPPLY THE NEEDED THERMOS-BOTTLE EFFECT, PREVENTING THE ESCAPE OF USEFUL MAGNETIC ENERGY AND ALSO AFFORDING EXIT POINTS FOR UNWANTED STRUCTURES WHICH THEN RETURN TO THE EARTH’S BALANCE SYSTEM.
38) A MINIMUM CLEARANCE OF 1/8″ UP TO 3/16″ BETWEEN THE INNER SURFACE OF TOP COIL #34 AND MAGNETS #22. A MAGNETIC PARTICLE WIND BUILDS WITHIN THIS SPACING THUS SUPPLYING THE NEEDED CIRCULATION FOR MAXIMUM MAGNETIC ENERGY WITHDRAWAL
39) ARE 20 BRONZE METAL STRIPS MEASURING 4″ LONG BY 1/8″ WIDE BY 1/16″ THICK, MADE OF 83% COPPER, 81/2% TIN, 51/2% LEAD AND 3% ZINC. EACH OF THESE METAL STRIPS GETS BONDED WITH CLEAR EPOXY GLUE TO THE TOP SURFACES OF THE BENT WIRES, PART #21 AND EXTENDS INWARD TO CONTACT THE WRAPPED WIRE PART #23, THEN RESTS AGAINST THE SIDE OF THE MAGNET. THIS METAL STRIP BUILDS, HOLDS AND RELEASES THE NEEDED MAGNETIC FIELD WHICH SUPPLIES THE RELEASE ACTION.
40) A COATING OF CLEAR ACRYLIC SECURED TO THE OUTER SURFACE OF THE ROTOR TO HOLD MAGNETS AND PARTS AS NEEDED.
41) THE ROTATIONAL DIRECTION IS COUNTER CLOCKWISE LOOKING AT THE UNIT FROM TOP DOWN.
42) NOTE- THE BENT WIRES PART #21, AT THEIR LEAD EDGE, DO NOT PROTRUDE PAST THE OUTER SURFACE OF PART #15. THEIR TRAIL EDGE IS 1/16″ BELOW THE SURFACE OF THE MAGNET WHICH ALLOWS STRIP #39 TO BE LOCATED TO NOT EXTEND OUTWARD PAST THE MAGNET WHEN PLACED ABOVE THESE BENT WIRES.
43) NYLON SET SCREWS TO SECURE PLATES #12 and #14 TO PART #15.
THIS CONCLUDES THE PARTS LIST. Please share this information with others.
